Basic frame (contd.)

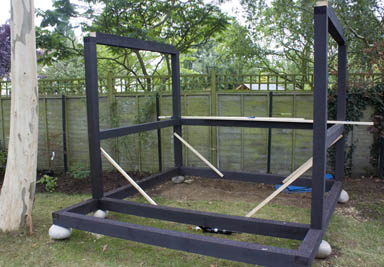

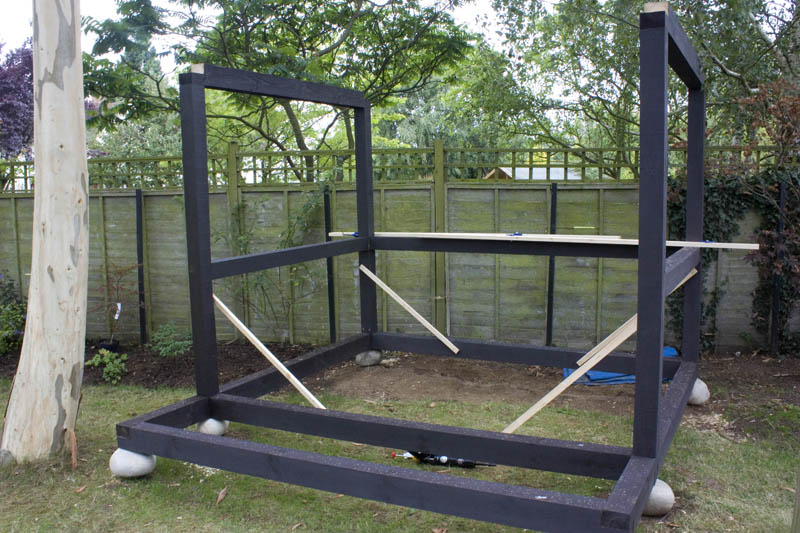

second side assembly and back girt in place and clamped

This photo shows the left side assembly similarly complete and the back girt in place, fixed and clamped. The 2 side top beams (5x4" - 125x100mm like the sill beams) are also fixed to the corner posts using adhesive and 4" galvanised nails.

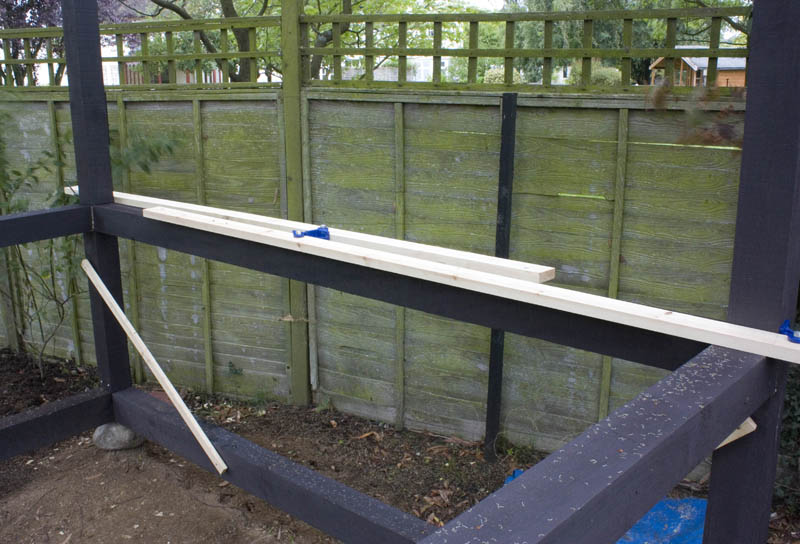

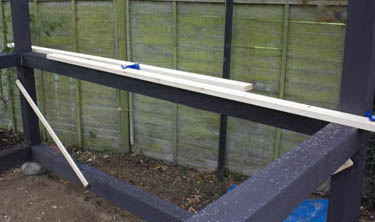

back girt clamping detail











This shows the back girt clamping in more detail, using 2 linked pairs of clamps to manage the length.
